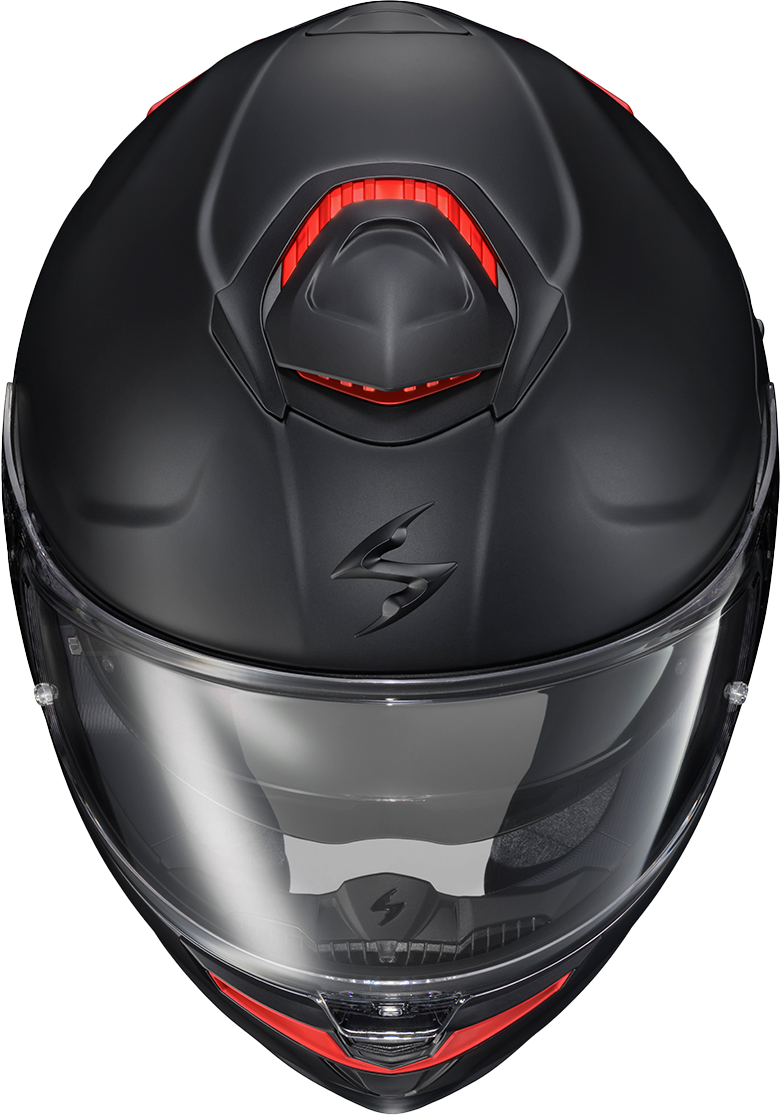

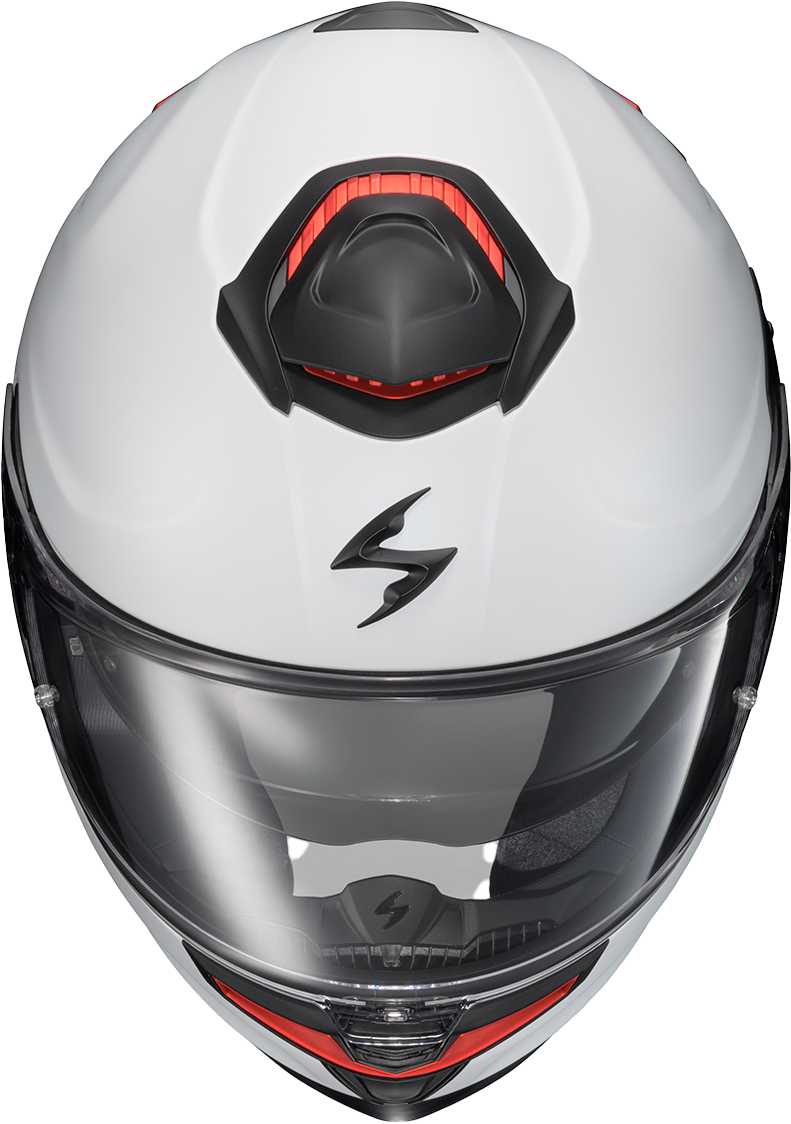

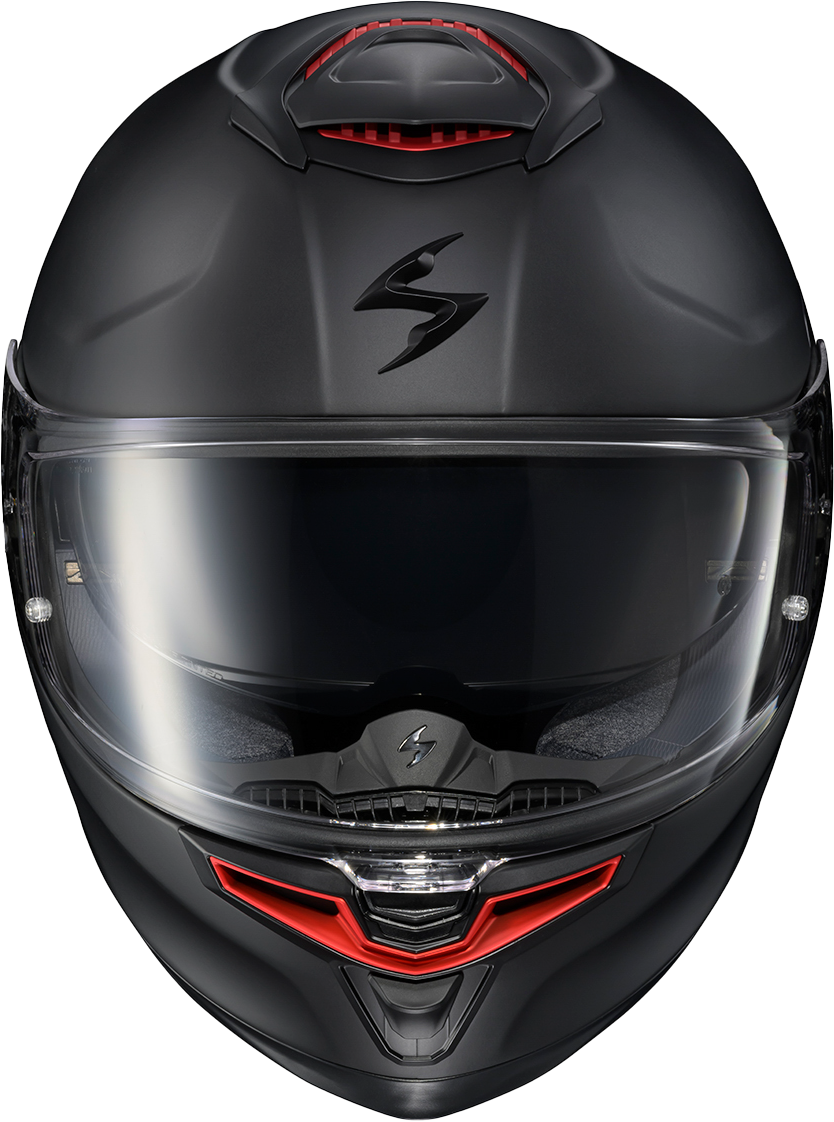

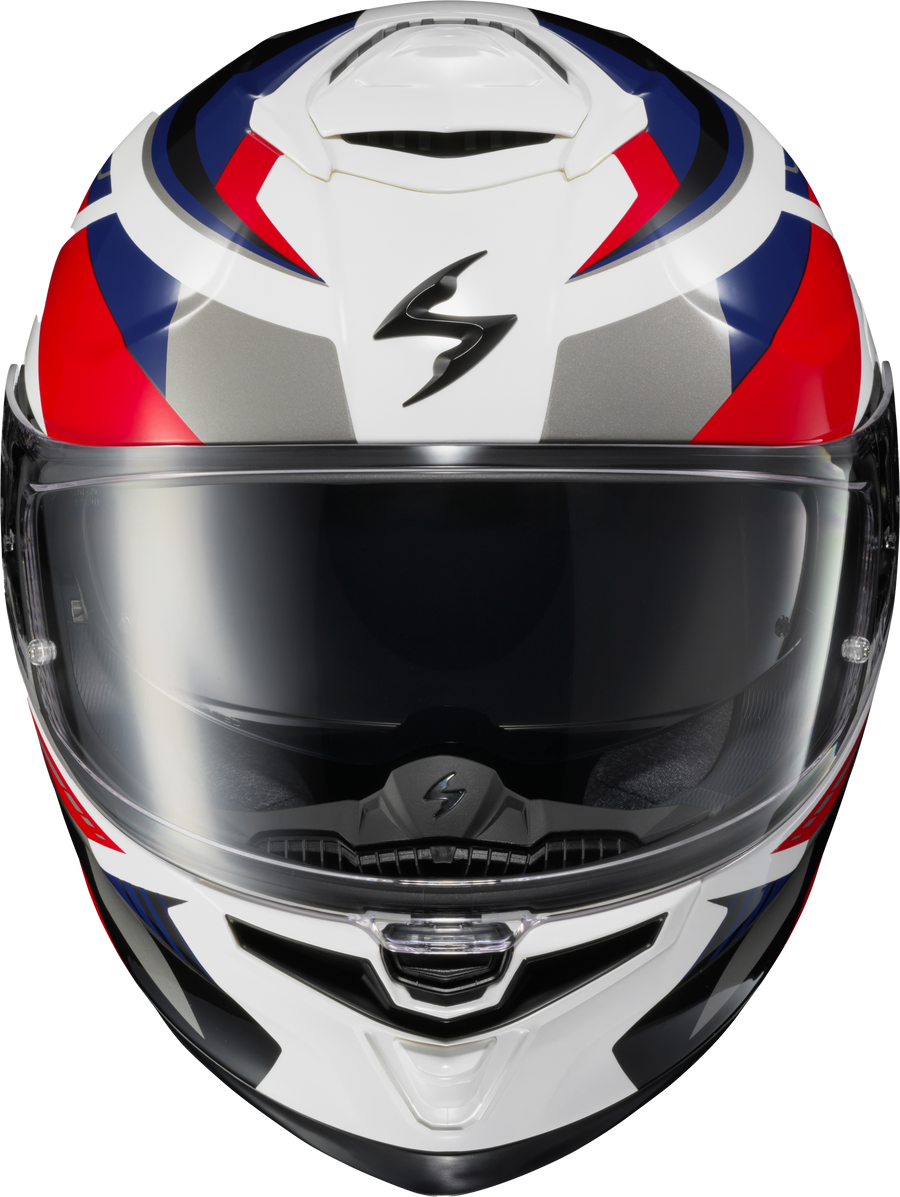

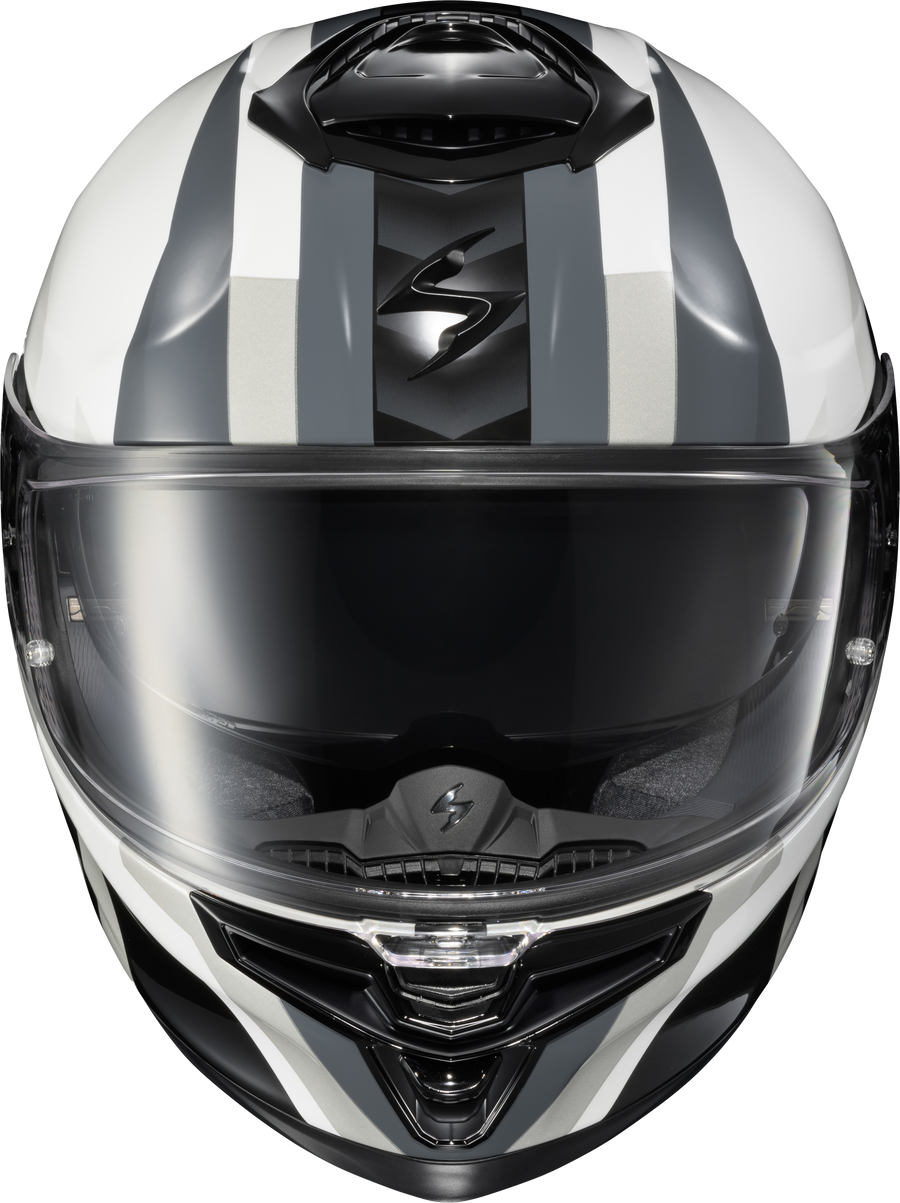

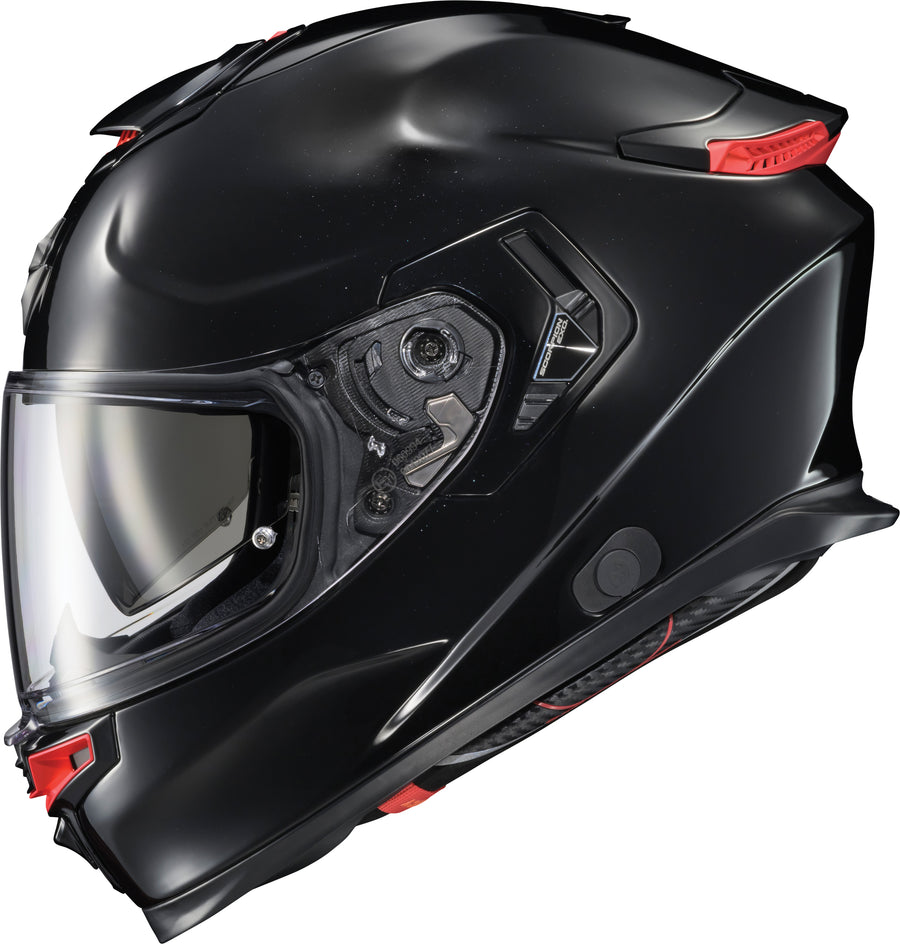

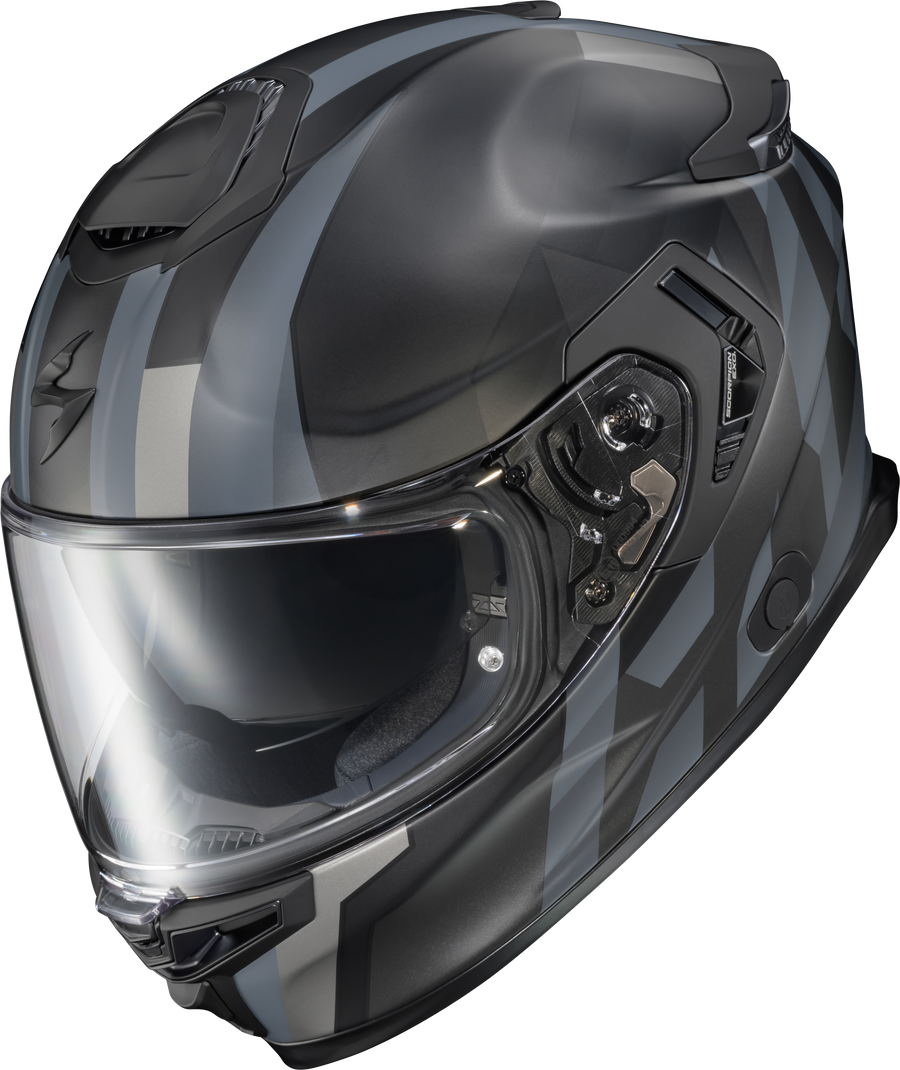

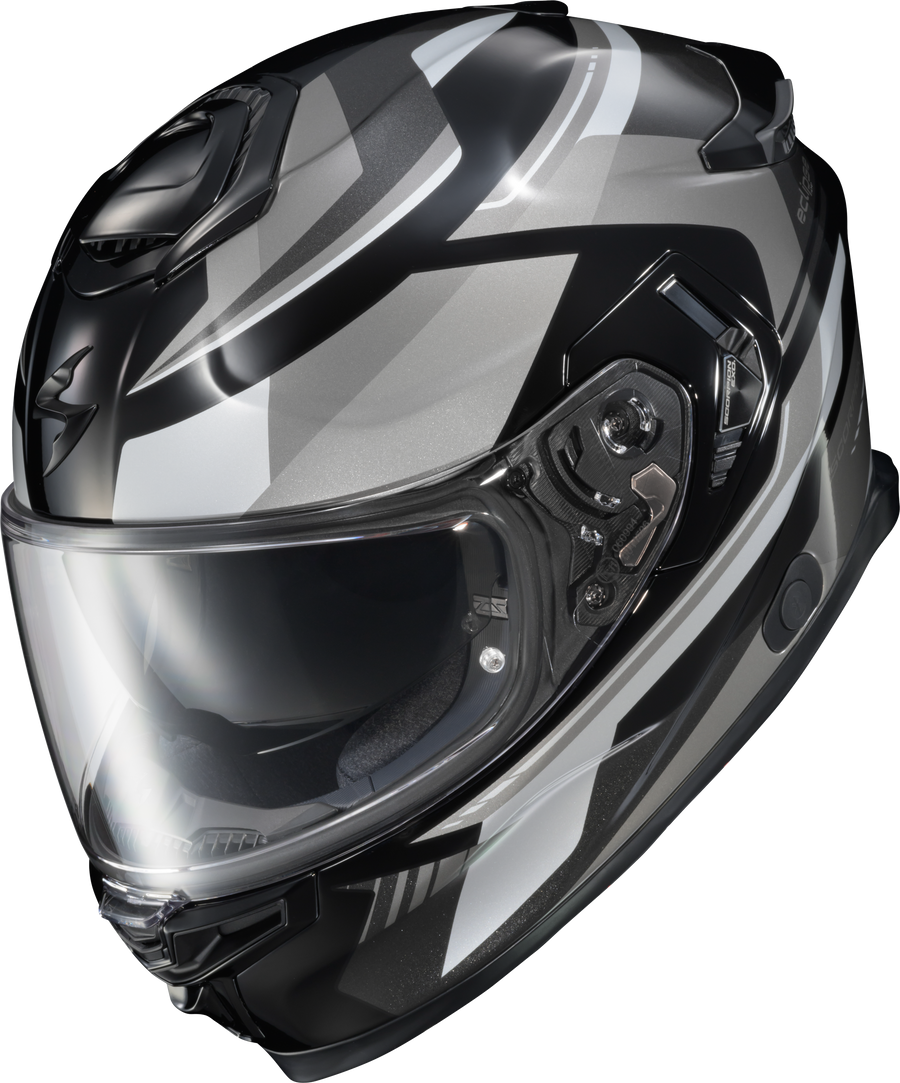

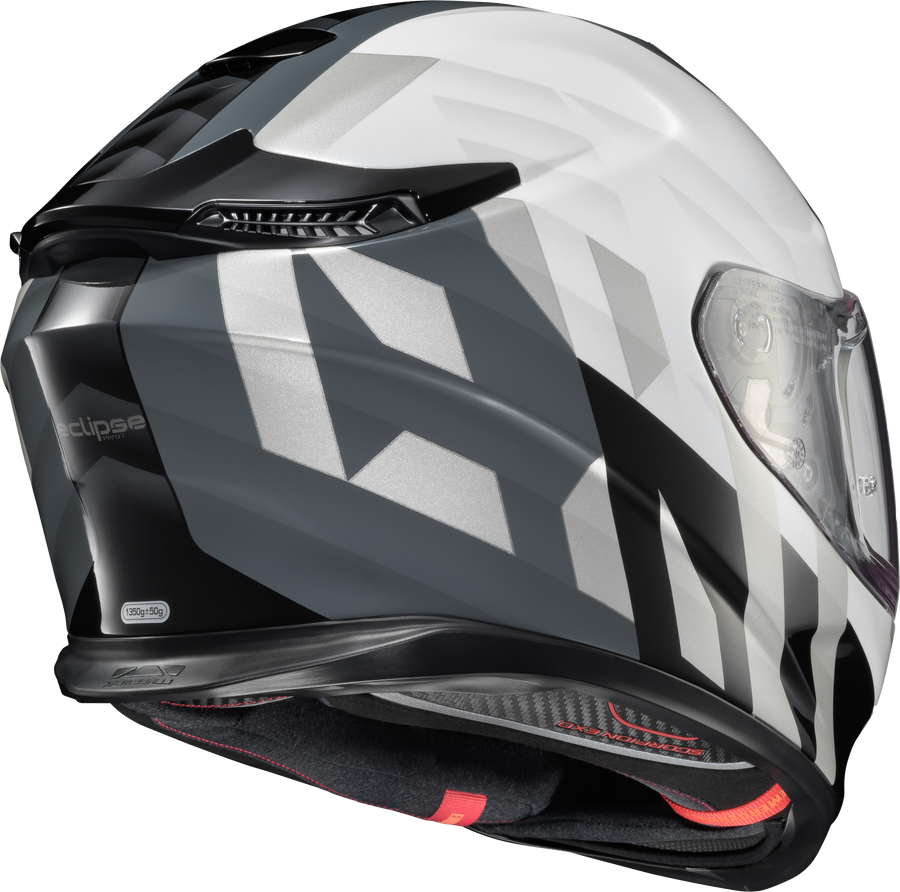

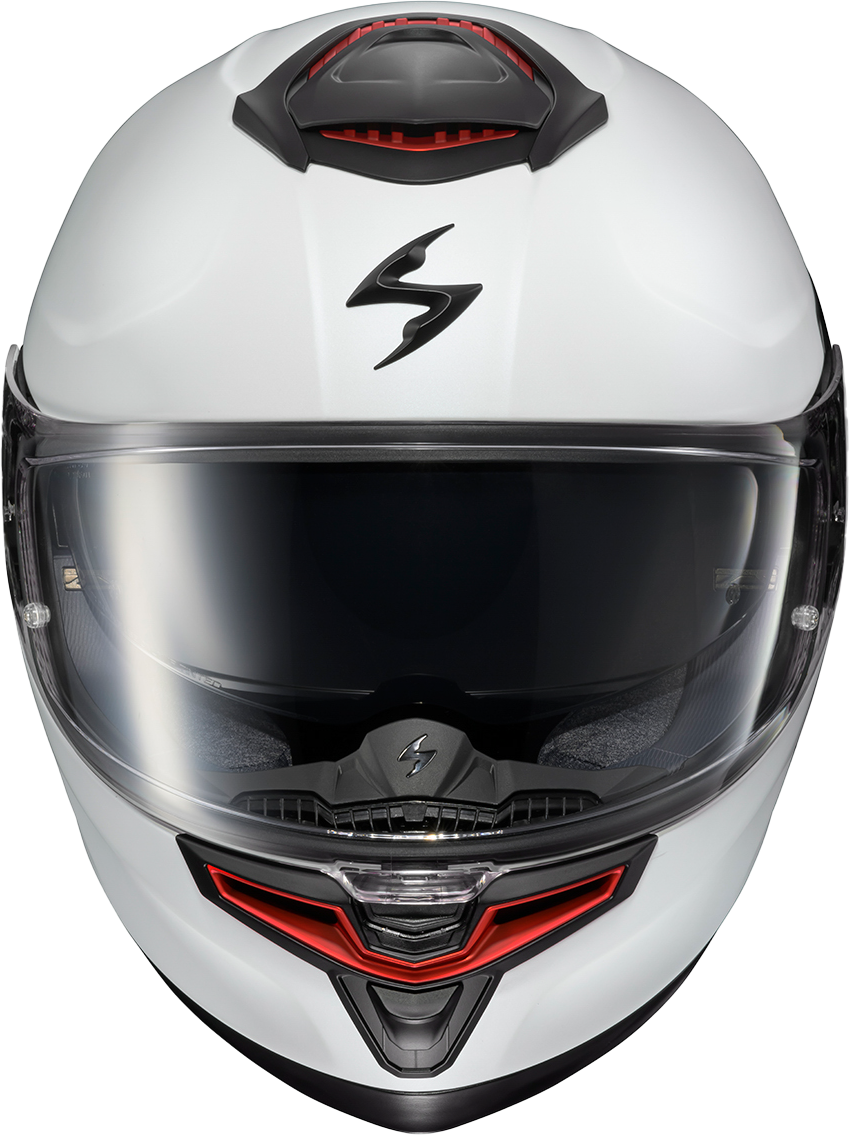

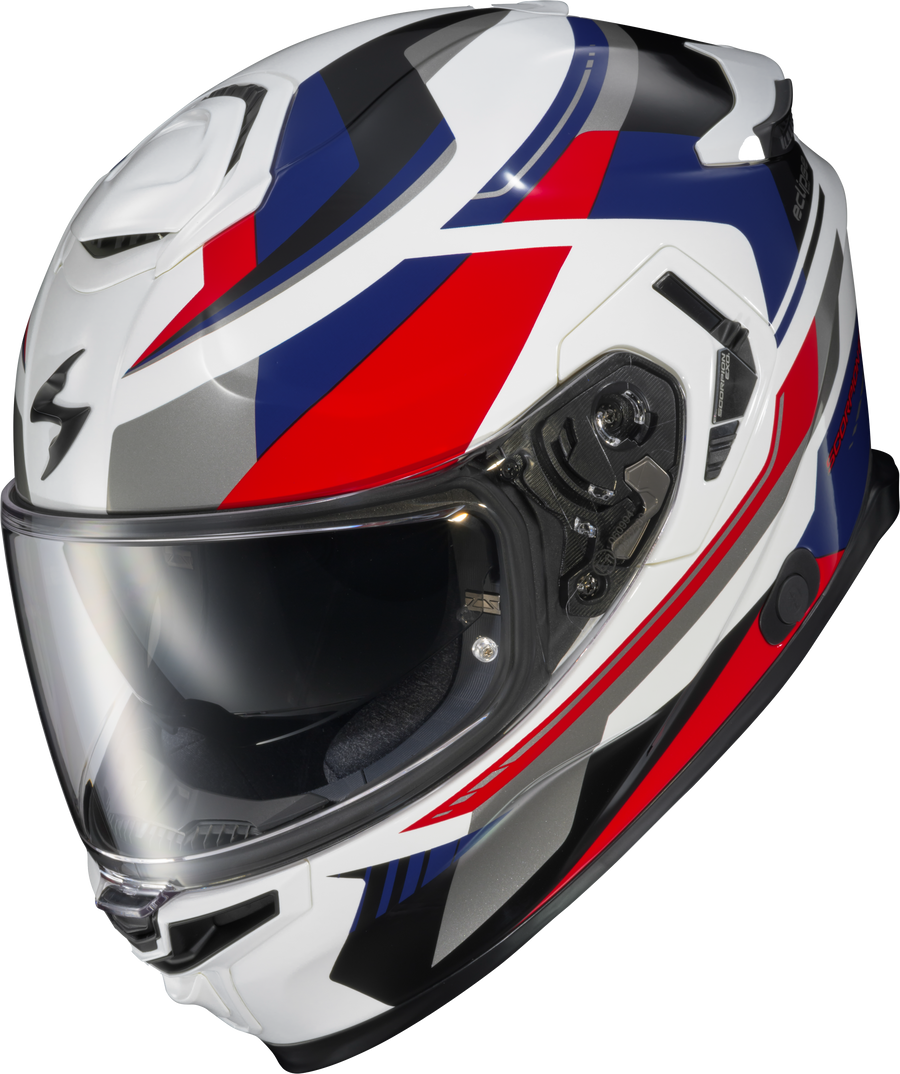

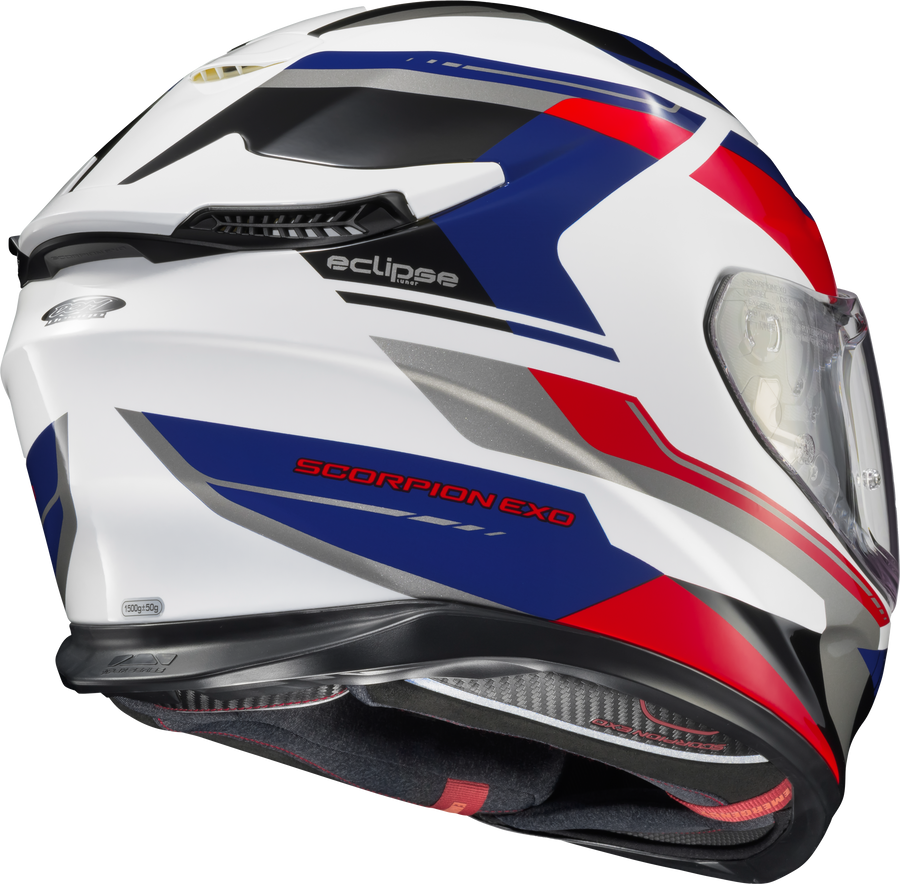

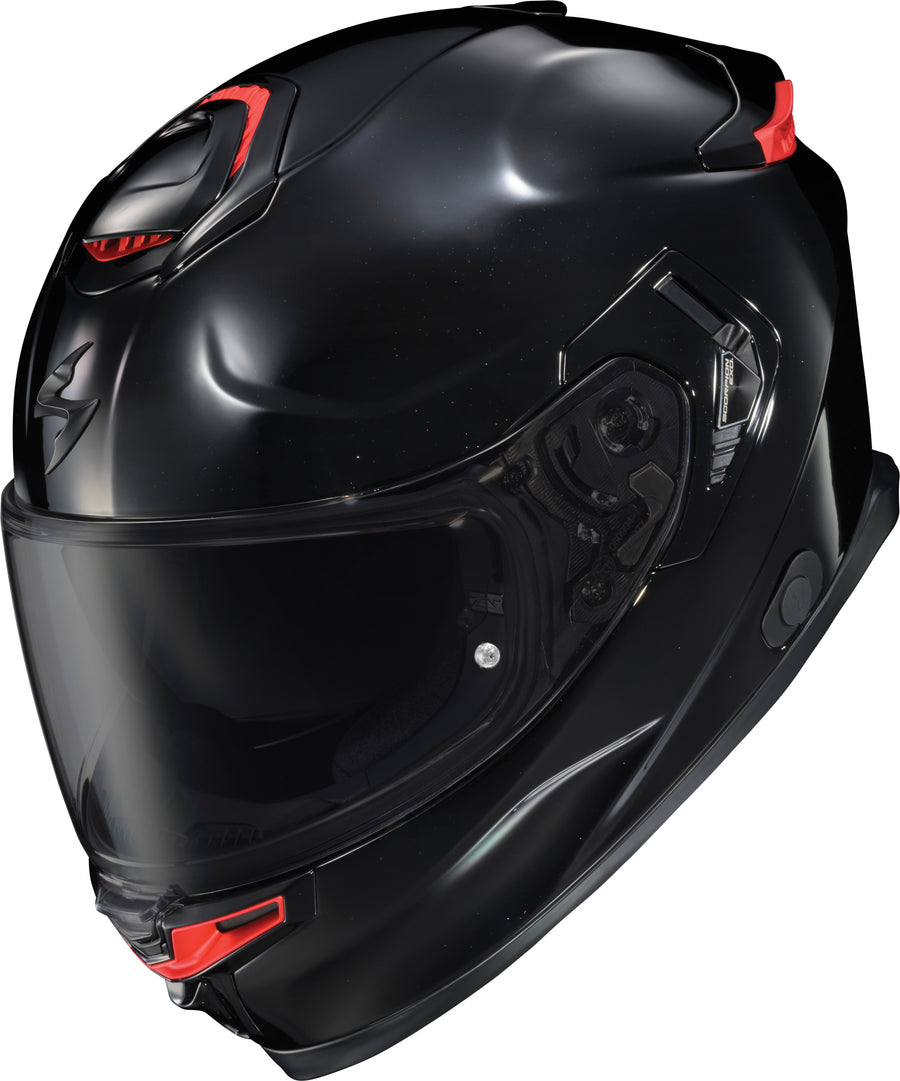

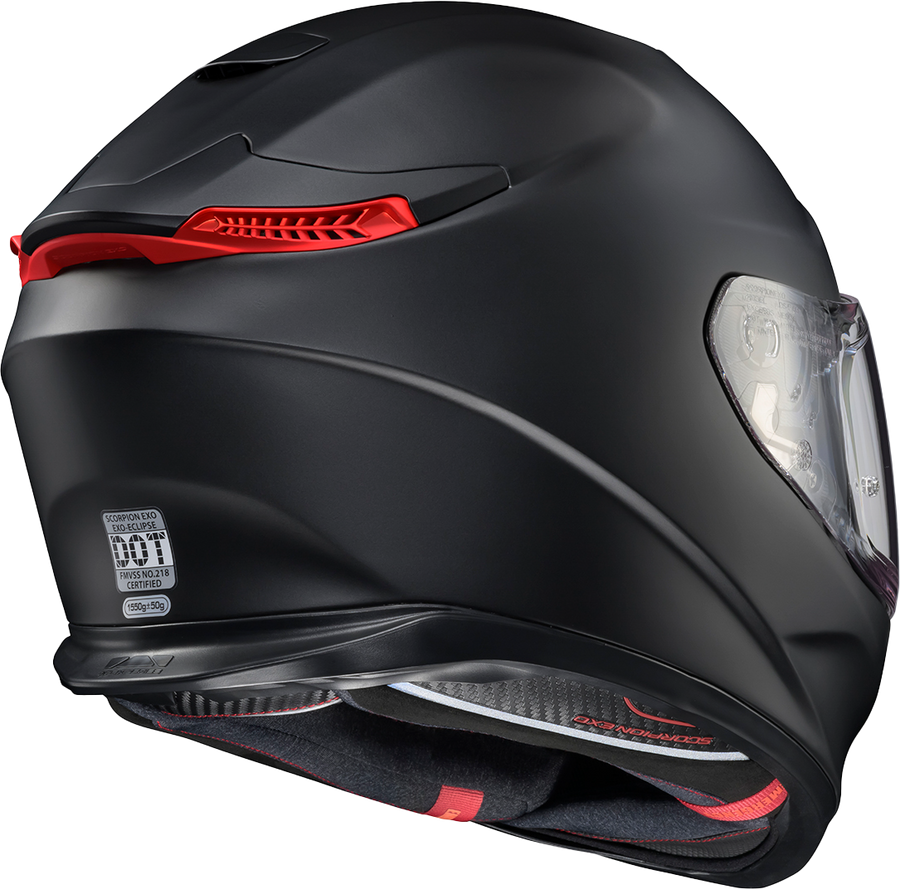

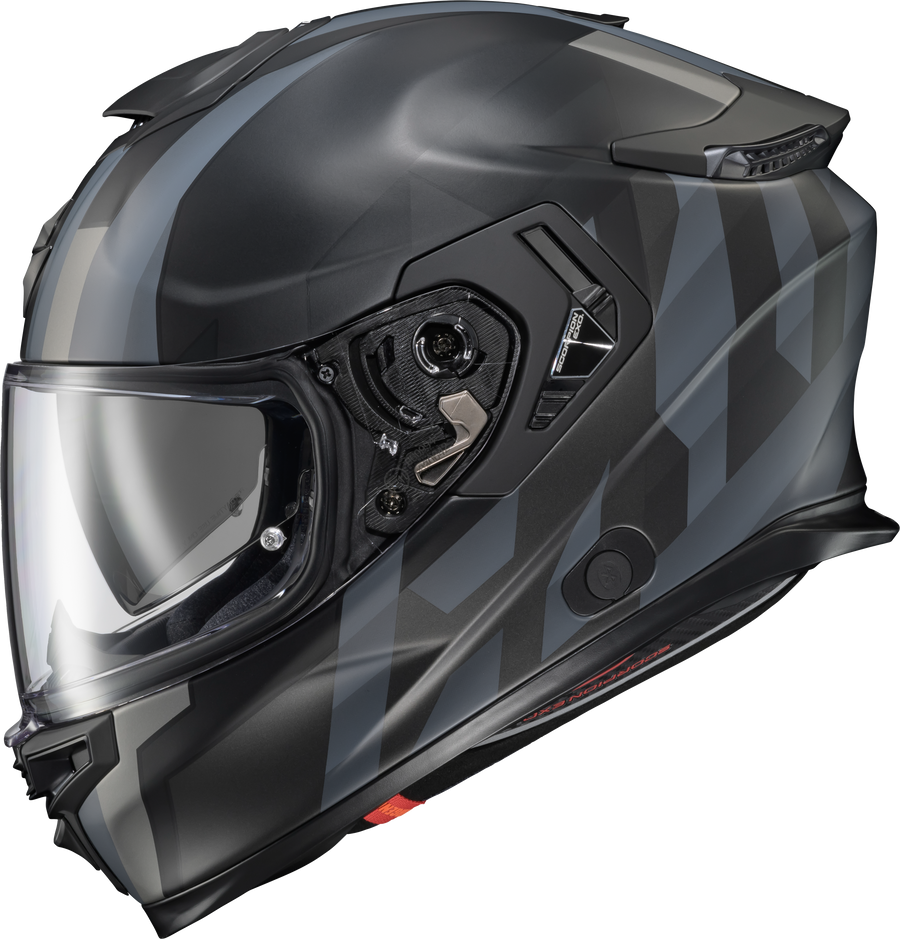

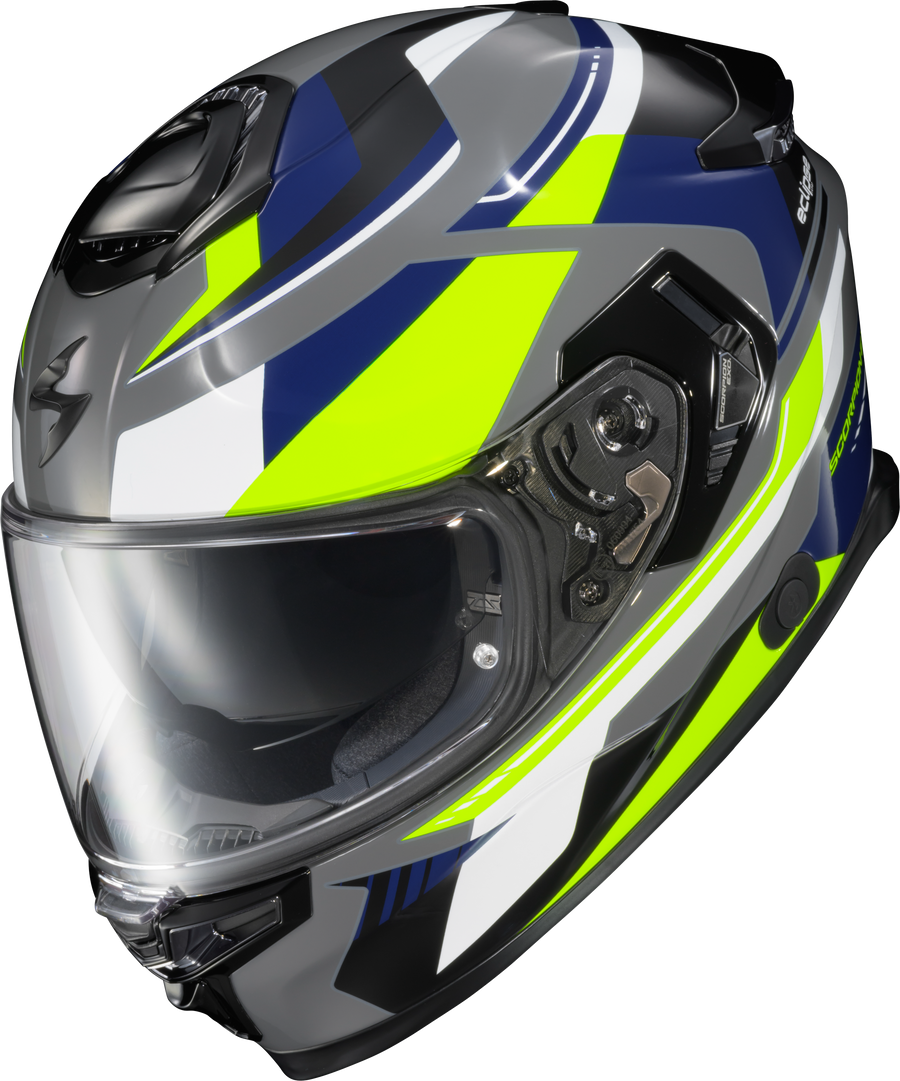

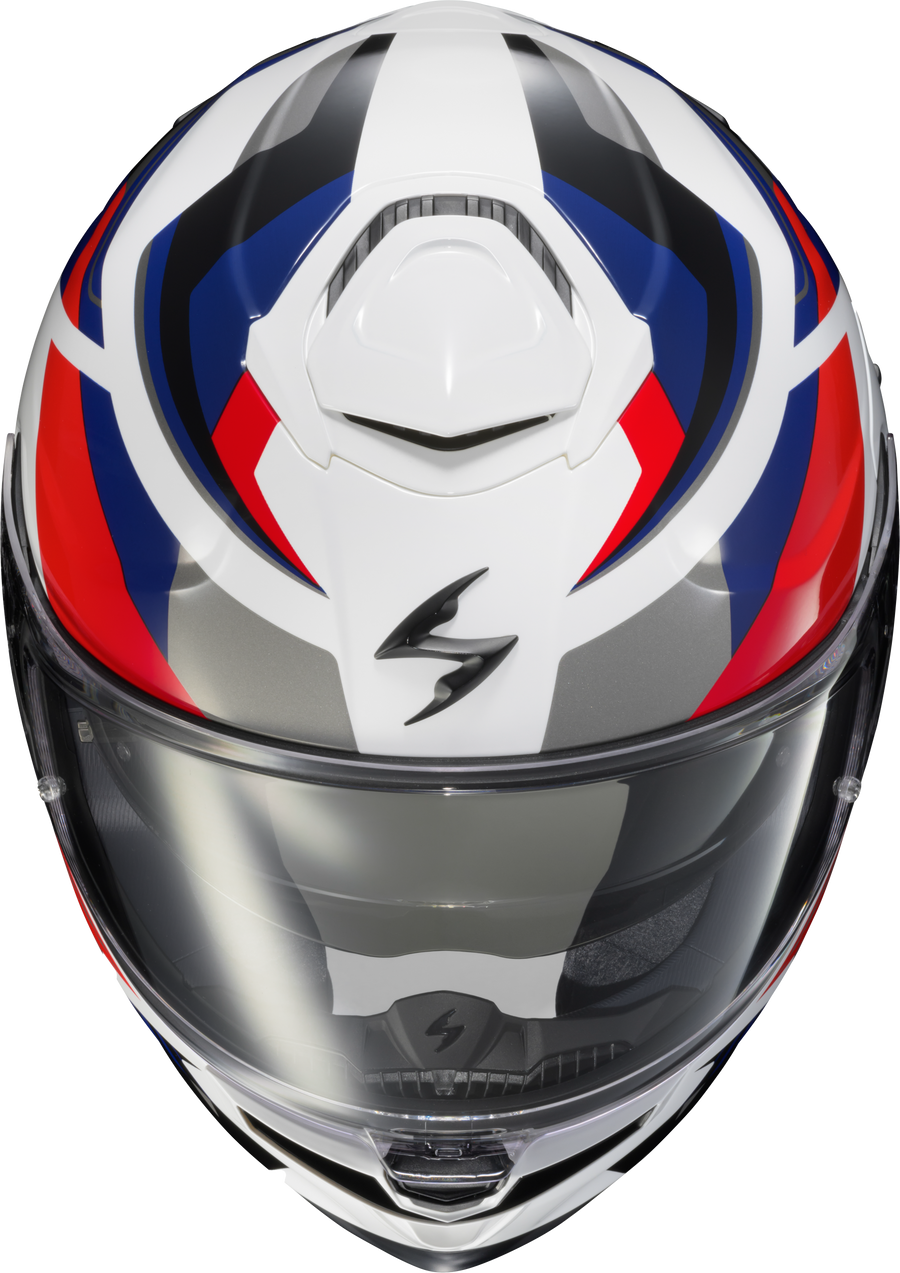

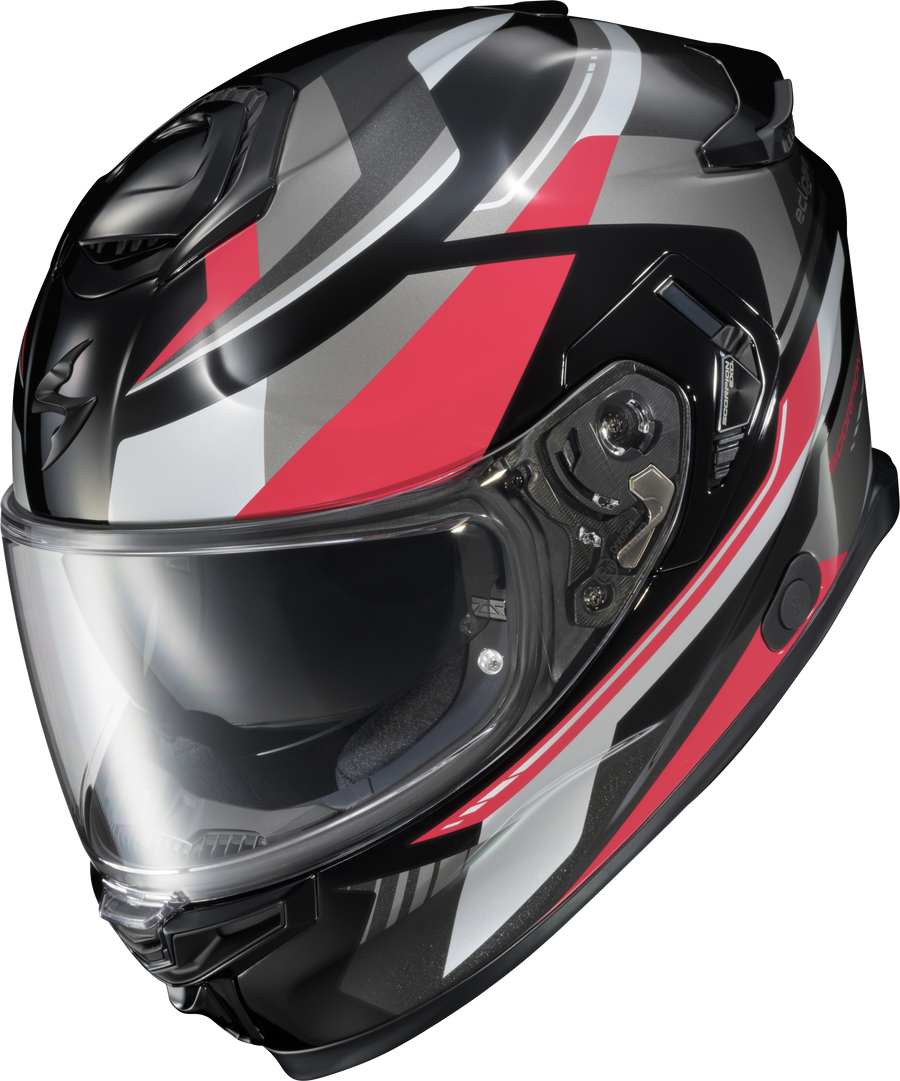

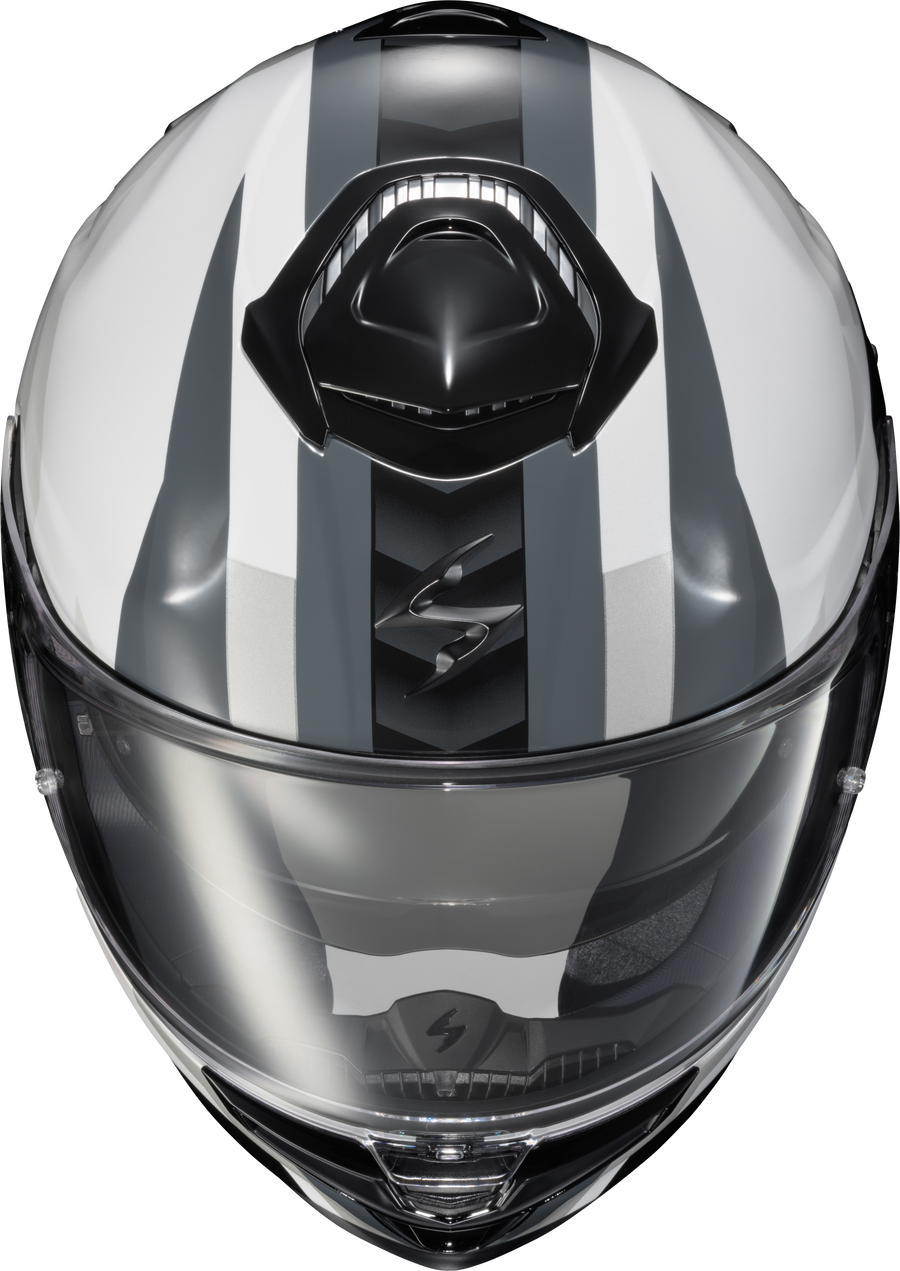

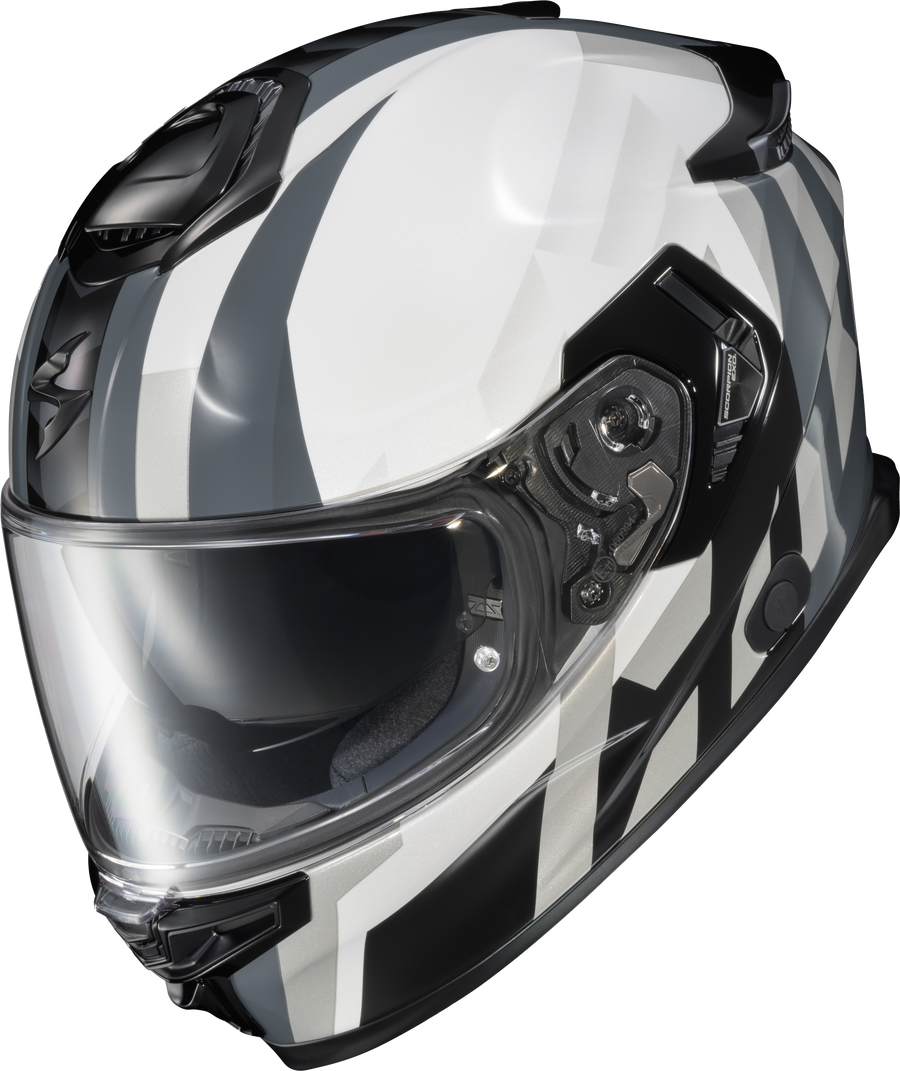

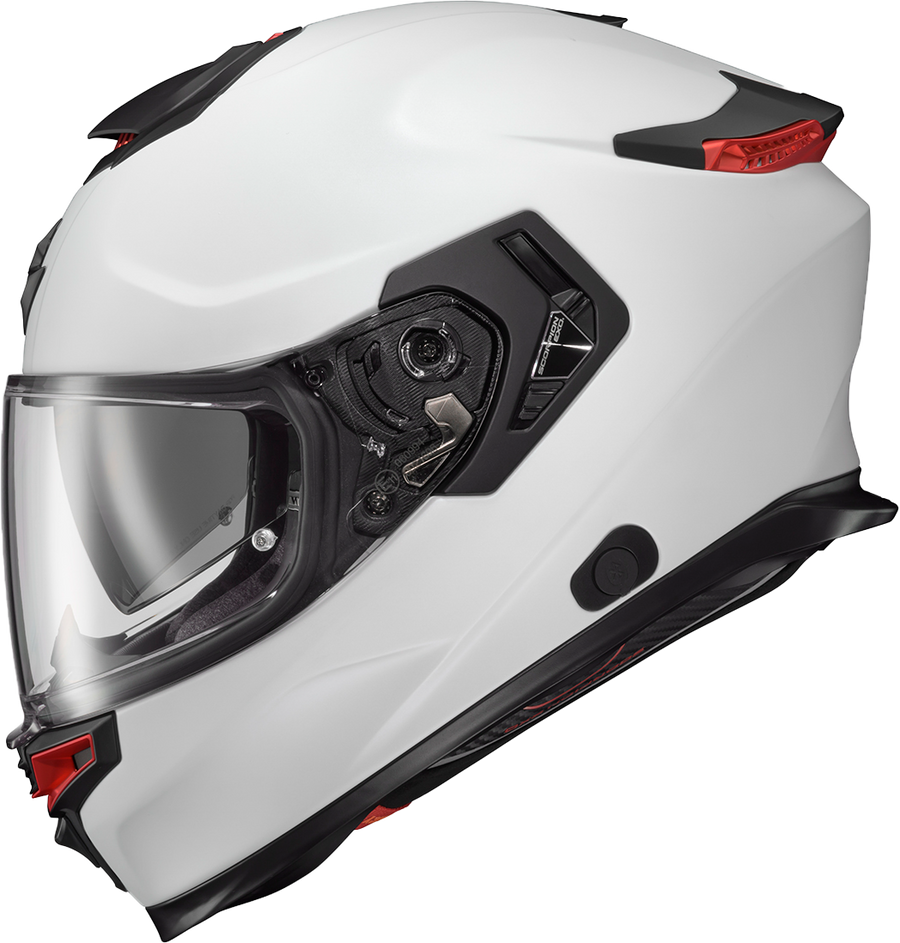

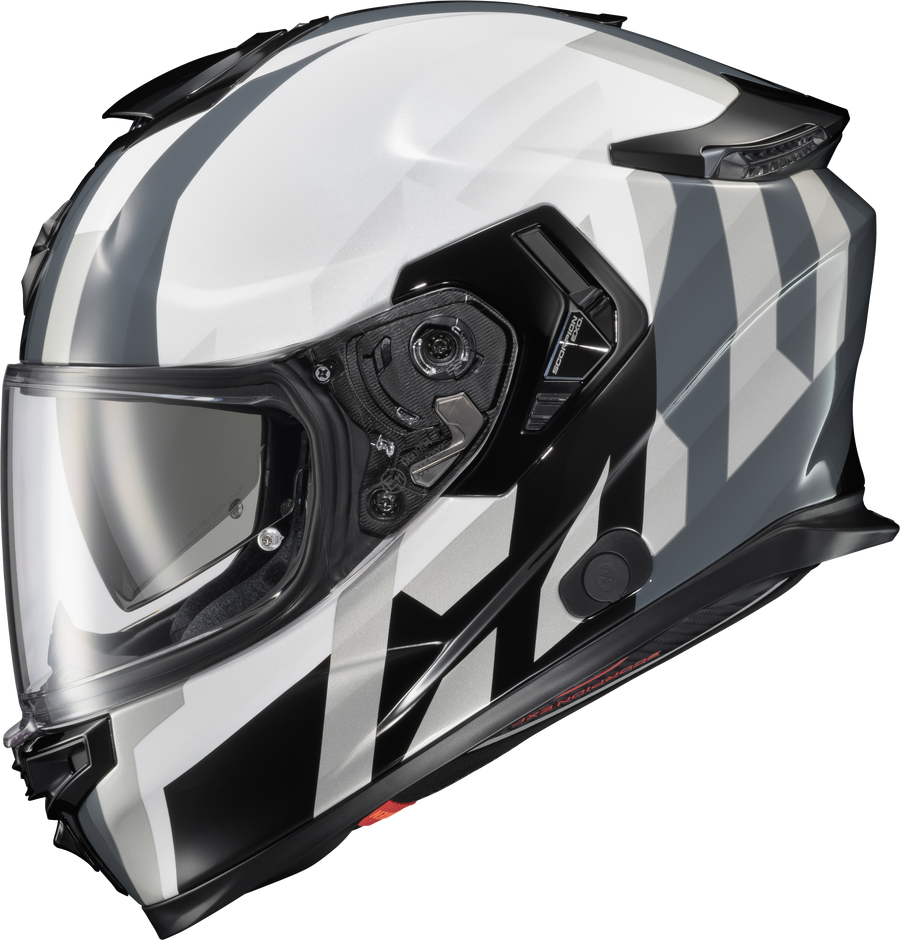

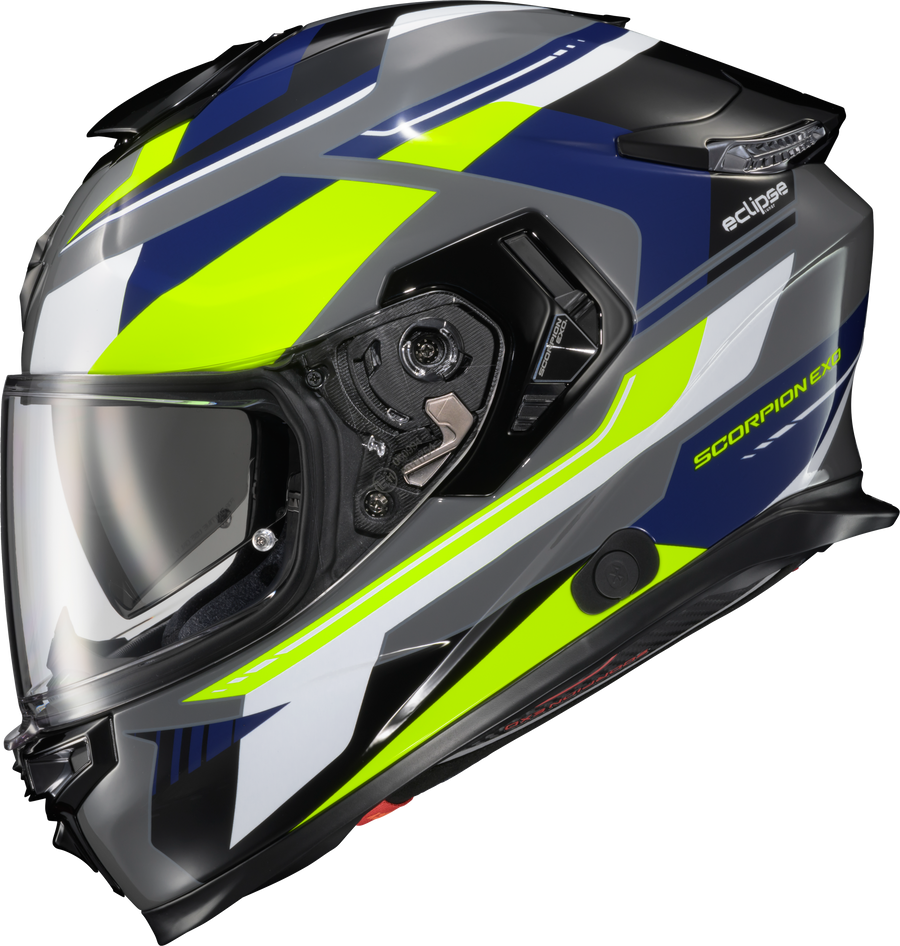

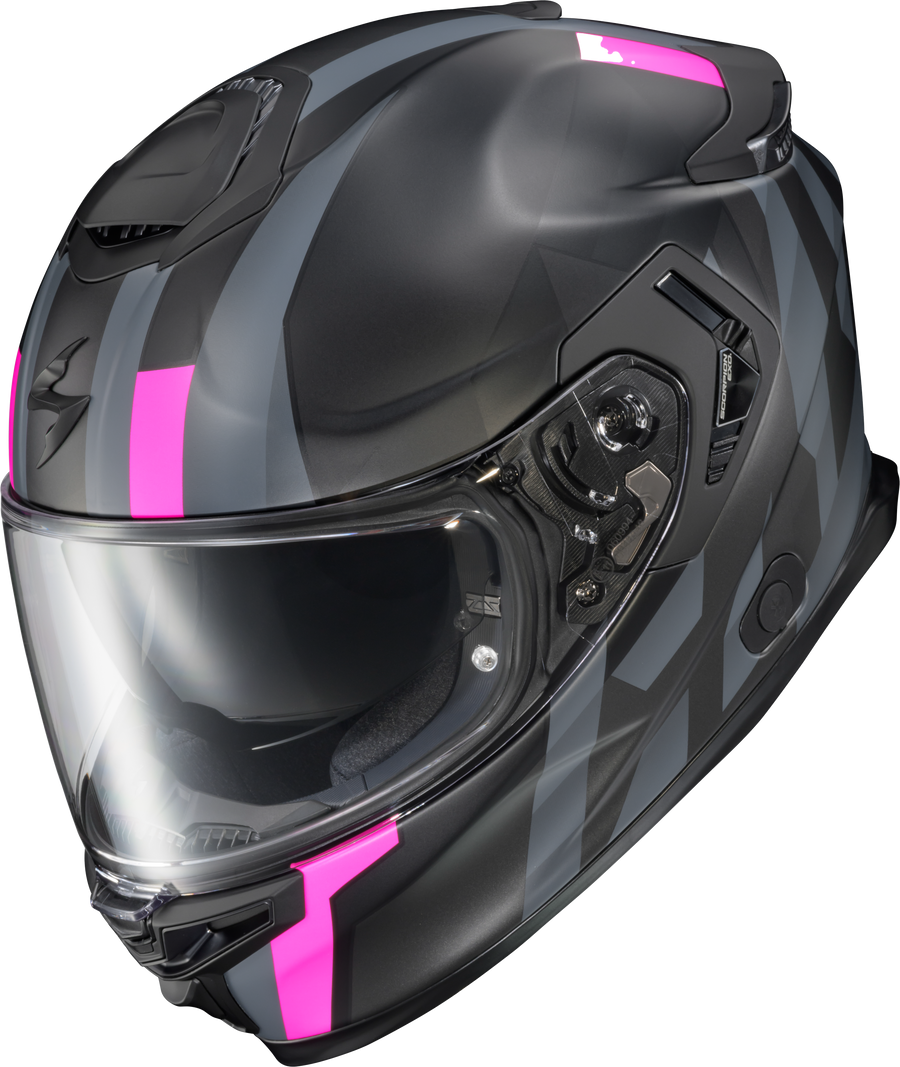

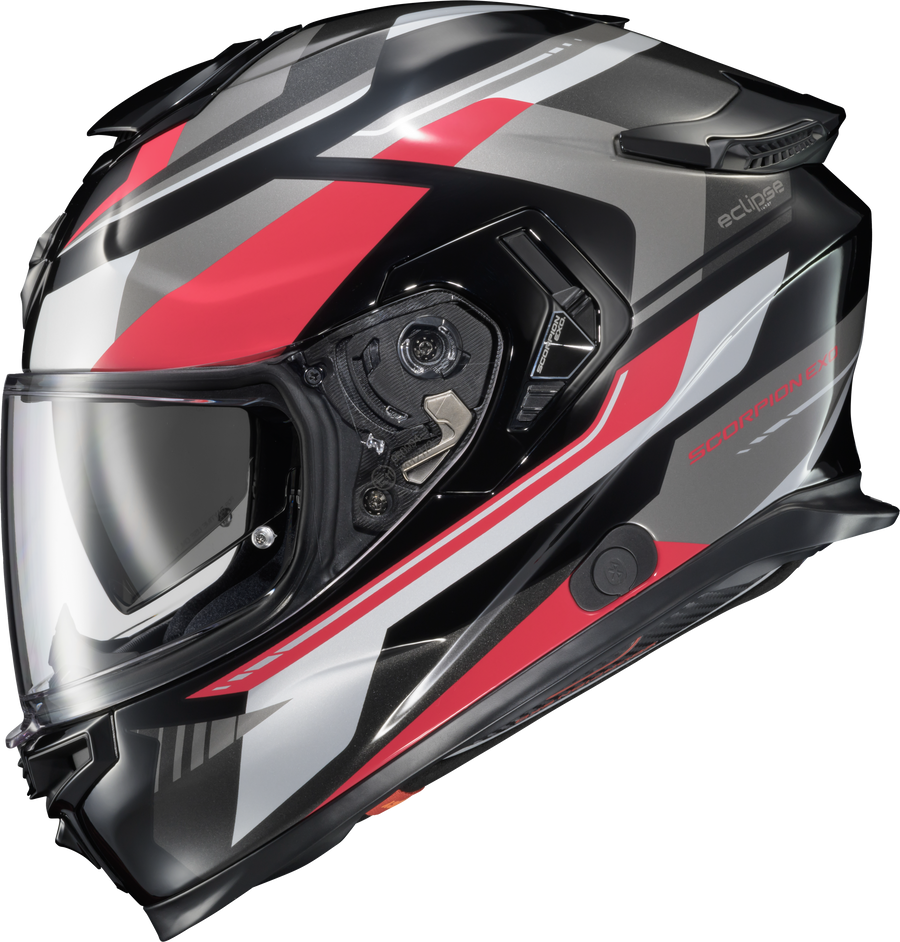

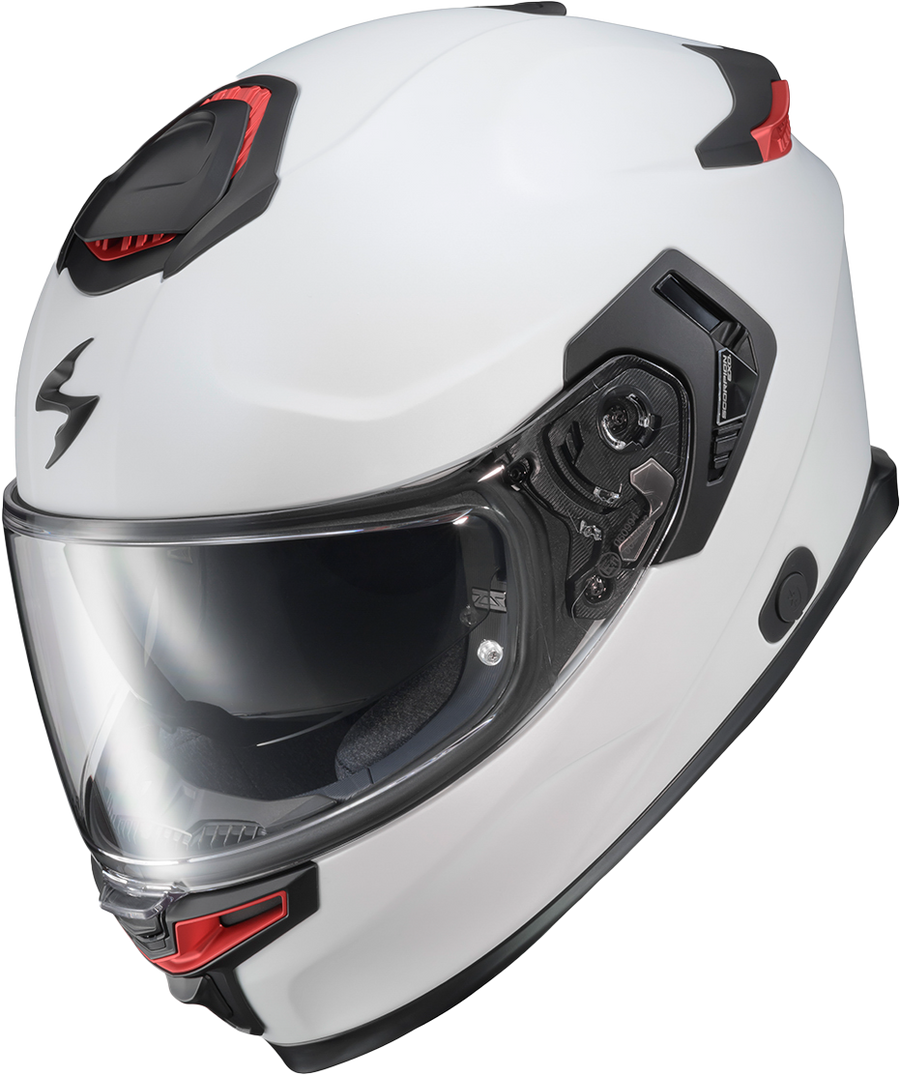

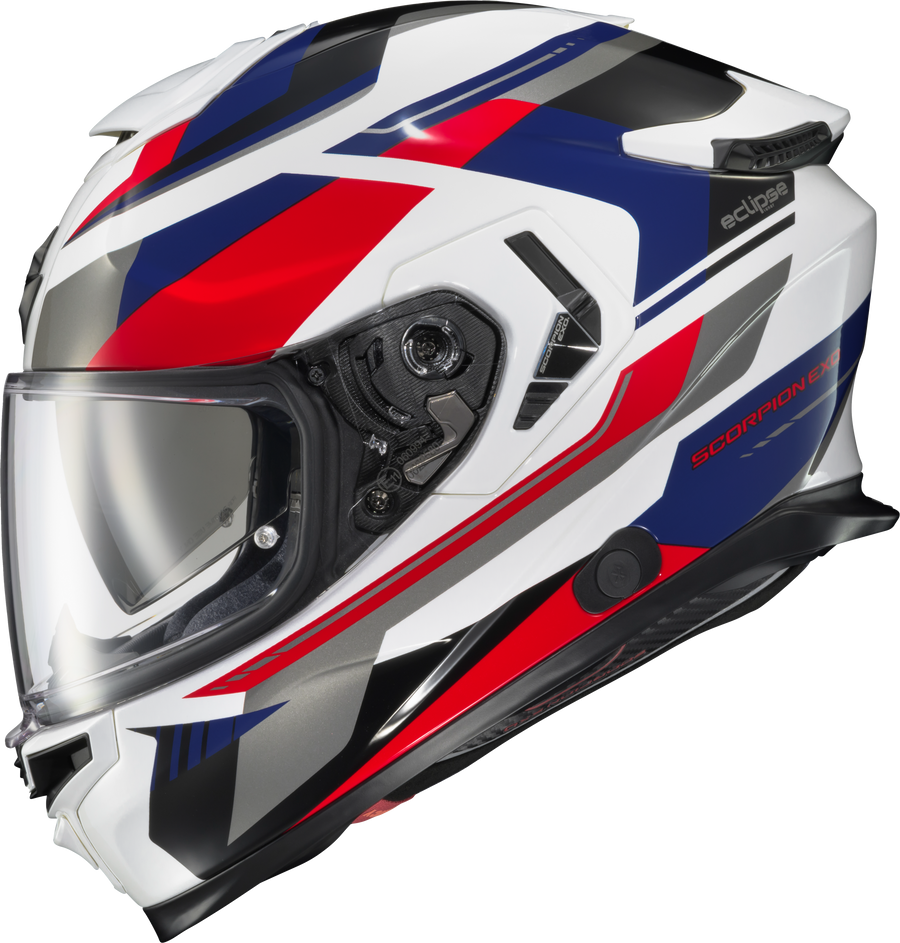

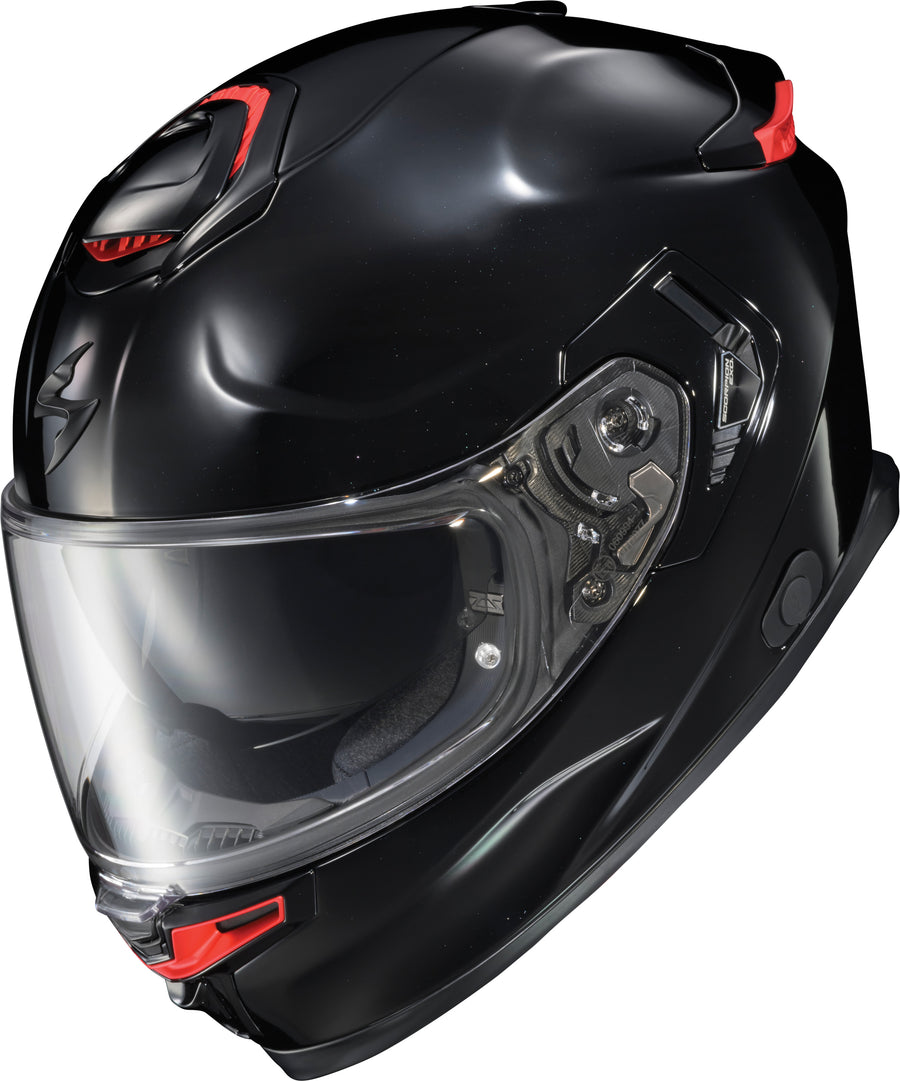

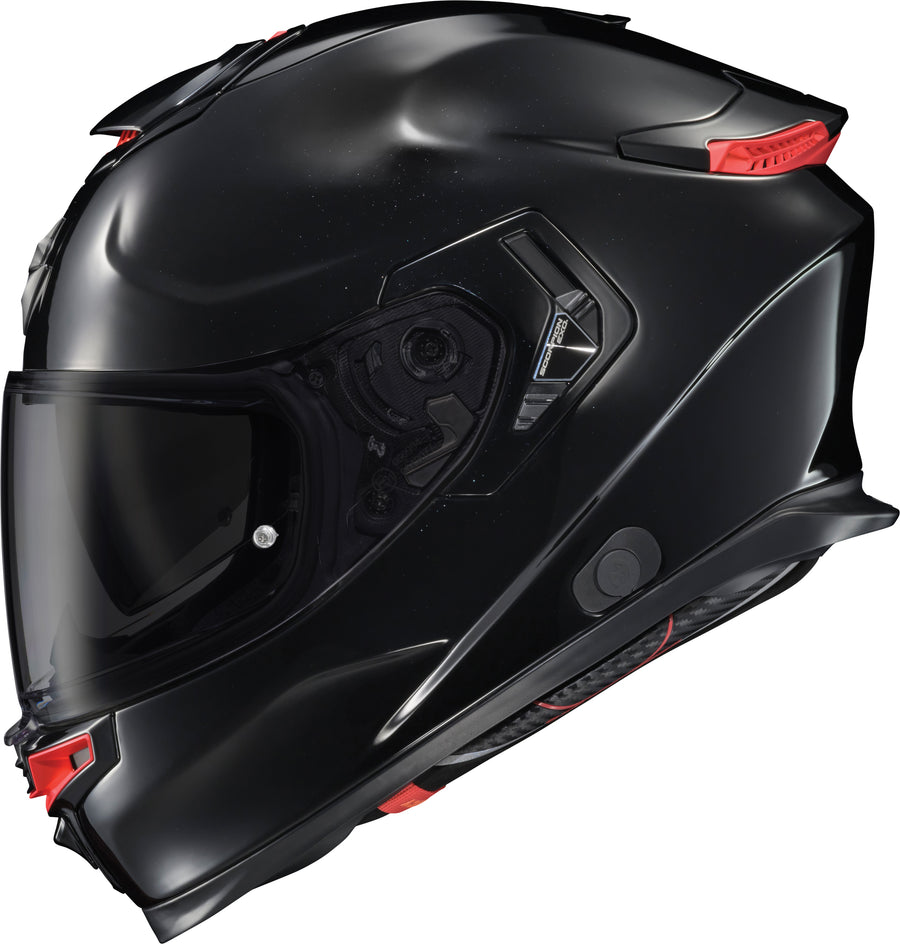

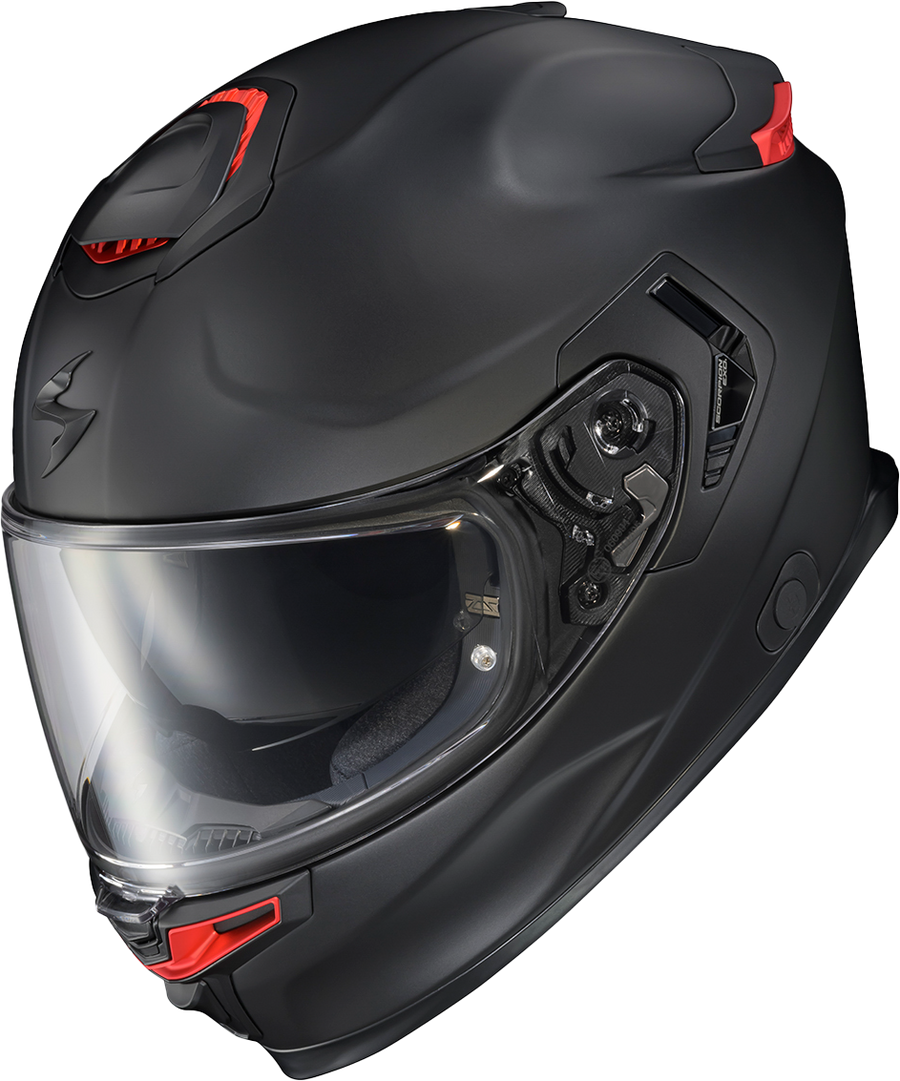

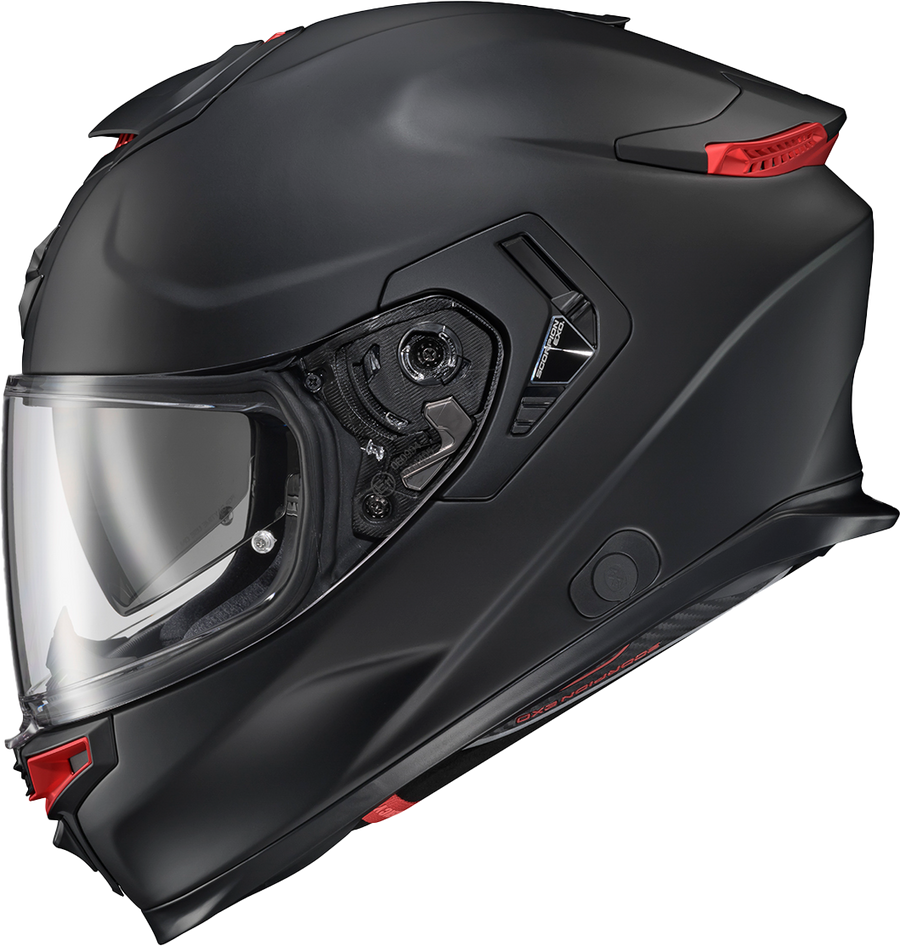

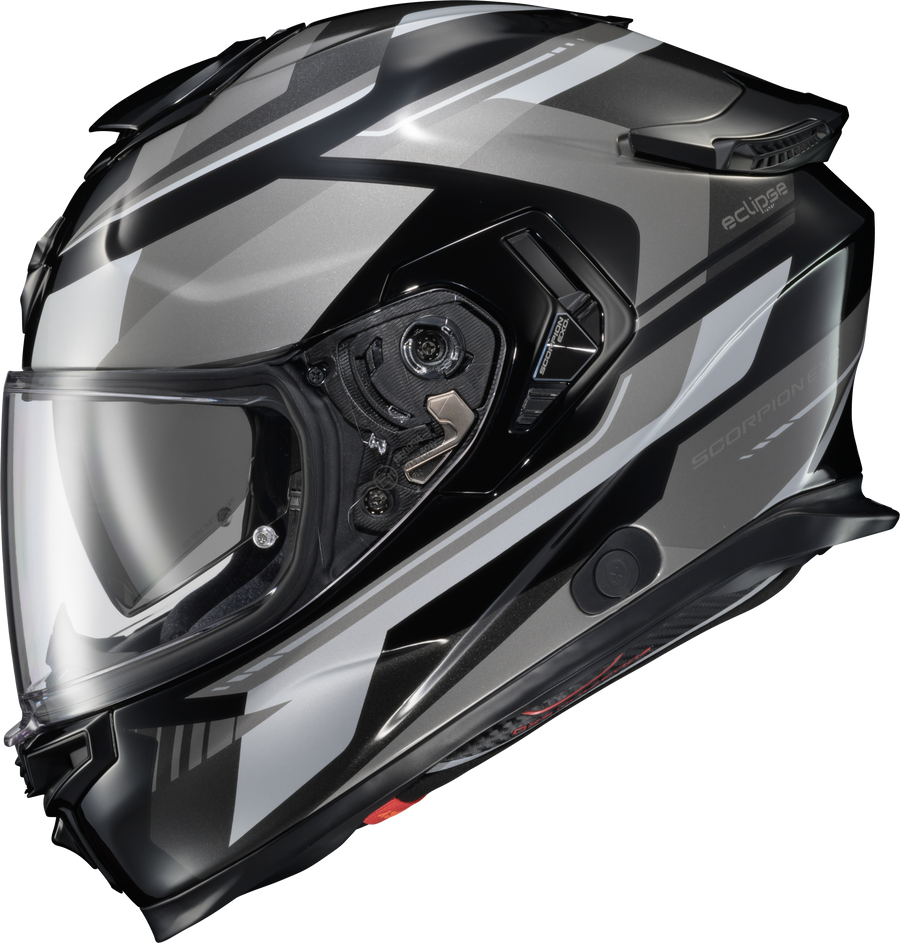

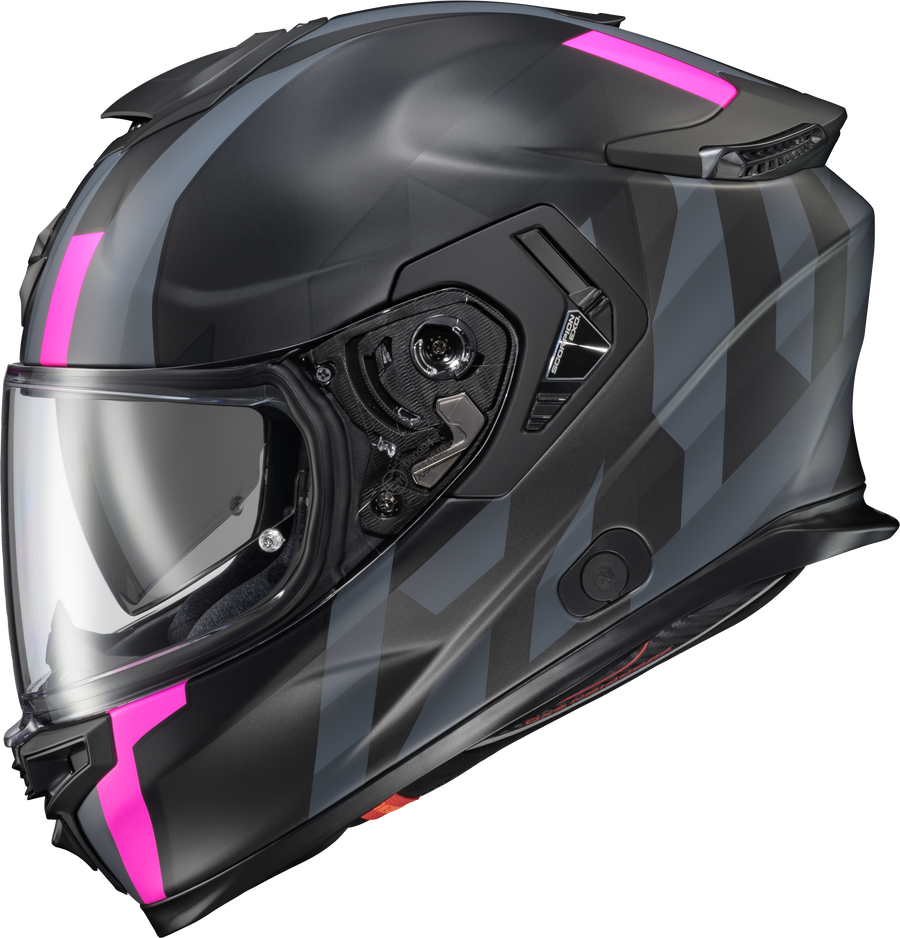

Eclipse Full Face Helmet
The New APEX Series from Scorpion EXO motorcycle helmets puts its attention to developing and offering the best Shell Materials, Aerodynamics, Vision, Safety, Weight, Ventilation and Comfort. Experience the future... Read More
The New APEX Series from Scorpion EXO motorcycle helmets puts its attention to developing and offering the best Shell Materials, Aerodynamics, Vision, Safety, Weight, Ventilation and Comfort. Experience the future of riding with the Apex Series — where cutting-edge materials, pioneering technology, and unmatched craftsmanship converge. Elevate your ride; choose APEX.
Features
- DOT FMVSS No. 218 Certified / ECE 22.06 Certified
- Lite Force Carbon Matrix Shell - Precision handcrafted 7 layer shell. Constructed from premium 12K chopped carbon strands, expertly fused into our proprietary Carbon Mat
- Optical Class 1 Pinlock® Ready Faceshield - Free MaxVision® Pinlock insert included. Also includes a Free Dark Smoke Pinlock-Ready® face shield
- Speed View Optical Class 1 Internal Sun Visor - Adjustable sun visor with Class 1 optics enhances visual accuracy, reduces glare, and prevents distortion
- Cool Tech Liner Kit - Adjustable crown liner, Anti-Microbial and Moisture-Wicking 3D Laser-Cut Cheek Pads with noise reduction design
- Communication System Speaker Pockets
- Aero Skirt
- 3 Shell Sizes
- Titanium Double D-Rings
- 5 Year Warranty
How to measure
Measure the circumference of your head with a soft tape, starting just above the eyebrow line (about one inch above the brows) and around the largest portion of the back of the head; repeat to confirm and choose the closest size. Roll-off check: with the chinstrap fastened, try to roll the helmet forward — if the eye port comes down past your brow, size down.
Type A — most models (EXO-R420, EXO-R320, Covert, EXO-HX1, EXO-AT950, VX-16, R1 Air, ST1400 EVO…)
| Size | Head circumference (cm) | Head circumference (inches) |
|---|---|---|
| XS | 53-54 | 20 7/8 - 21 1/4 |
| S | 55-56 | 21 5/8 - 22 |
| M | 57-58 | 22 1/2 - 22 7/8 |
| L | 59-60 | 23 1/4 - 23 5/8 |
| XL | 61-62 | 24 - 24 3/8 |
| 2XL | 63-64 | 24 3/4 - 25 1/4 |
| 3XL | 65-66 | 25 5/8 - 26 |
| 4XL | 67-68 | 26 3/8 - 26 3/4 |
Type B — EXO-GT930, EXO-T520, Covert FX, Covert II, EXO-R430, EXO-XT9000 Carbon, EXO-AT960 (runs ~1 size small from L up)
| Size | Head circumference (cm) | Head circumference (inches) |
|---|---|---|
| XS | 54 | 21 1/4 |
| S | 55-56 | 21 5/8 - 22 |
| M | 57-58 | 22 1/2 - 22 7/8 |
| L | 58-59 | 22 7/8 - 23 1/4 |
| XL | 60-61 | 23 5/8 - 24 |
| 2XL | 62-63 | 24 3/8 - 24 3/4 |
| 3XL | 64-65 | 25 1/4 - 25 5/8 |
| 4XL | 66-67 | 26 - 26 3/8 |
Youth sizes
| Size | Head circumference (cm) | Head circumference (inches) |
|---|---|---|
| Y-SM | 48-49 | 18 7/8 - 19 1/4 |
| Y-MD | 50-51 | 19 3/4 - 20 1/8 |
| Y-LG | 52-53 | 20 1/2 - 20 7/8 |
Scorpion officially maintains TWO adult charts. Type B models (EXO-GT930, EXO-T520, Covert FX/II, EXO-R430, EXO-XT9000 Carbon, EXO-AT960) shift ~1 cm smaller per label from L upward — a 60 cm head is L in Type A but XL in Type B. cm ranges are canonical (official sources round inches inconsistently). Youth chart is from an older official PDF — re-verify against a current dealer sheet before featuring prominently.
Manufacturer sizing data · verified July 8, 2026
